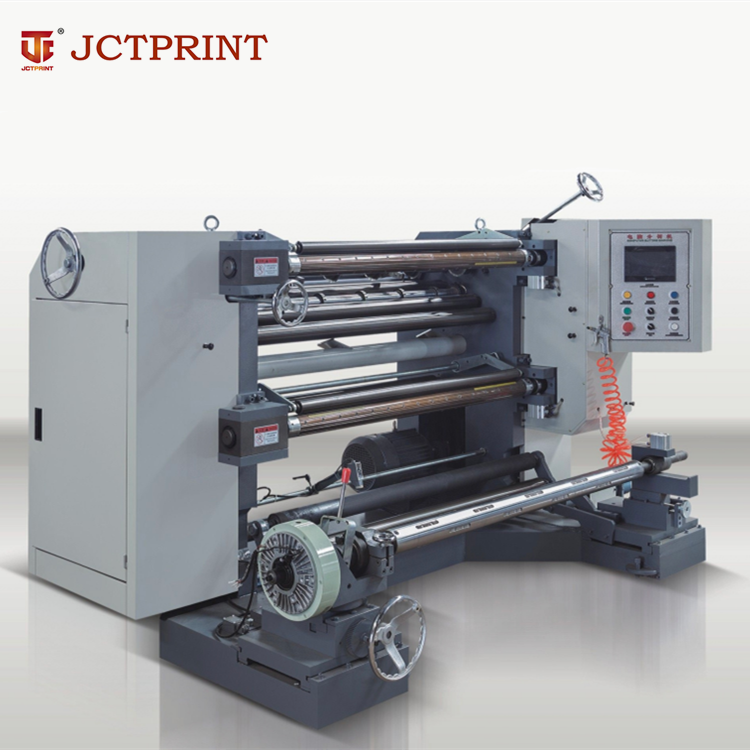

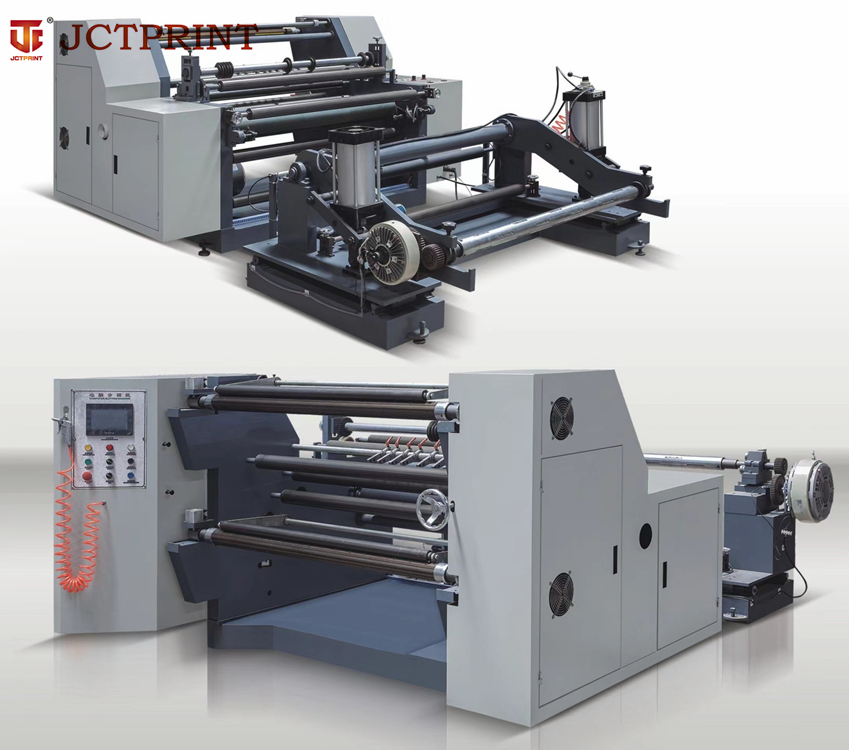

FQ-1300 Slitting Machine / FQ-320/450 Slitter Rewinder Machine
Update time:2023-08-22
FQ-1300 Automatic Slitter Rewinder Machine:
Max. web width : 1350mm
Max. parent roll diameter : 600mm
Max. rewinding diameter : 400mm

FQ-320/450 High Speed Lable Slitting and Rewinding Machine:
Max. web width : 320mm/450mm
Max. rewinding diameter : 500mm
Min. slitting width : 16mm



Inquire
Contact us
Rroduct description
Related products

JCTPRINT Slitting Machine

FQ-1300 Slitting and Rewinding Machine

FQ-320/450 Slitting and Rewinding Machine

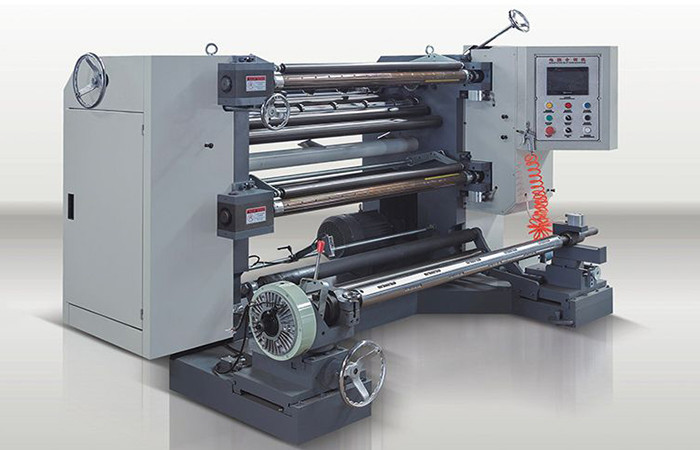

FQ-1300 Automatic Slitter Rewinder Machine

FQ-1300 vertical slitting machine is mainly used to cut large rolls of raw materials into small rolls of wide width materials, suitable for cutting and rewinding various roll materials such as PET, BOPP, CPP, PE, PVC, self-adhesive, paper, aluminum foil, etc. It is an ideal equipment for paper-making, plastics, printing and packaging industries for edge trimming, separation and slitting.

automatic slitter rewinder-1.jpg


Get a quote☞


Slitting Machine Specifications

ModelFQ-1300
Max. web width1350mm
Max. parent roll diameter600mm
Max. rewinding diameter400mm
Max. unwinding speed150m/min
Unwinding shaft type3inch air expanding shaft
Machine weight1000kg
Voltage3-phase, 380V, 50hz
Rewinding shaft diameter3inch
Overall dimensions2050x1600x1500mm

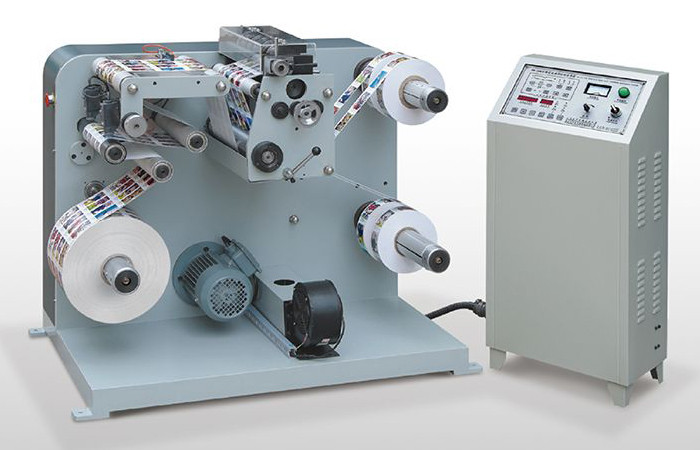

 FQ-320/450 High Speed Lable Slitting and Rewinding Machine

Automatic slitting machine FQ-320/450 is an auxiliary equipment for automatic label printing machine and roll-to-roll die-cutting machine,suitable for slitting paper into narrow strips.



Get a quote☞


Slitting and Rewinding Machine Specifications

ModelFQ-320/450
Max. web width320mm/450mm
Max. rewinding diameter500mm
Min. slitting width16mm
Slitting accuracy±0.15mm
Slitting speed85m/min
Overall dimensions (LxWxH)1500x1000x1200mm
Machine weight430kg

    Product details

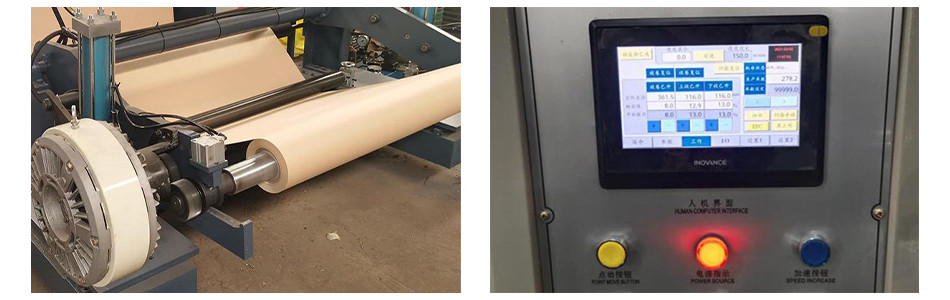

FQ-1300

slitting machine 11.jpg

slitting machine 111.jpg

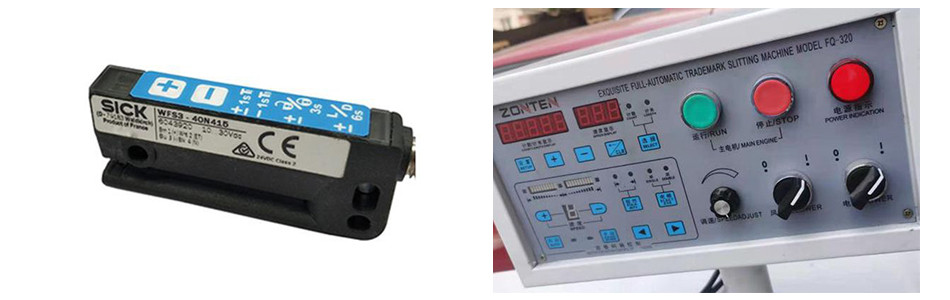

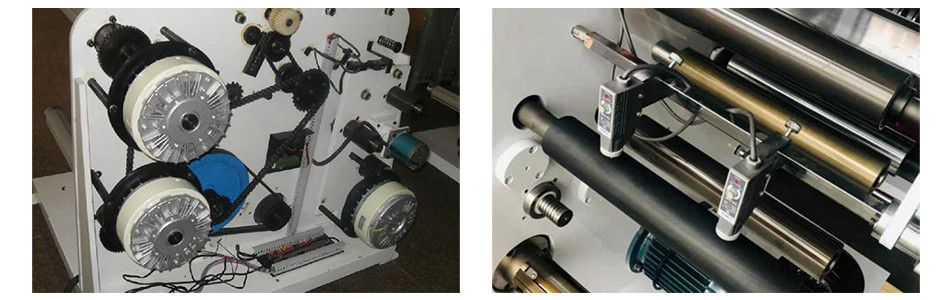

FQ-320/450

slitting machine 22.jpg

slitting machine 222.jpg
