YMQ/LPM Die cutting machine

Update time:2021-04-27

JCTPRINT die cutting machines are mainly aimed to various different shape brand,widely applied to cut various size playing card,New year card, note book, Credit card, drop and handbook , children reading book etc.
1.High efficiency: with an average production of about 900.000 production of high precision hourly.
2.This machine adopts hydraulic pressure system.
3.Max. Die-cut size: 380*300mm Min. Die-cut size: 20*20mm
4.Max. Die-cut height: 310mm
5.Working speed: 12 Time/min

Inquire

Rroduct description

Related products

YMQ series die cutting machine

YMQ-115/200/260/350

Contact us for a quote☞

YMQ series die cutting machine details

Model	YMQ-350	YMQ-260	YMQ-200	YMQ-115-1	YMQ-115（old)
Voltage	7.5HP	7.5HP	5HP	3HP	3HP
Power(W)	5.6KW	5.6KW	3.75KW	2.25KW	2.25KW
Max. Die-cut size	380*300mm	300*240mm	220*220mm	150*150mm	140*140mm
Min. Die-cut size	90*90mm	65*65mm	50*50mm	30*30mm	20*20mm
Max. Die-cutheight	310mm	260mm	220mm	200mm	200mm
Working speed	7Time/min	8 Time/min	10Time/min	12 Time/min	12Time/min
Die-cut pressure	11 T	8 T	5 T	3 T	3 T
Dimension (LWH mm)	260012501900	245010001800	22008501650	13507501500	14008501500
Gross Weight	1900kg	1600kg	1000kg	700kg	650kg
Special Configuration	Photo electric protection				/

LPM series die cutting machine

LPM-150/220/280/400/500

Contact us for a quote☞

LPM series die cutting machine details

Model	LPM-500	LPM-400	LPM-280	LPM-220	LPM-150
Power(W)	4KW	4KW	3KW	2.2KW	1.5KW
Nominal force	50KN	50KN	40KN	30KN	16KN
Max. Die-cut size	340*340mm	270*270mm	200*200mm	160*160mm	110*110mm
Min. Die-cut size	150*150mm	120*120mm	55*60mm	10*20mm	10*20mm
Max. Die-cutheight	200mm	200mm	200mm	200mm	200mm
Working speed	+12000 Sheets/min	+12000 Sheets/min	+12000 Sheets/min	+12000 Sheets/min	+12000 Sheets/min
Dimension(LWH mm)	270011401860	250010401660	23008501600	14508501500	12008501400
Gross Weight	1140kg	900kg	560kg	360kg	300kg

Advantage

* High efficiency: with an average production of about 900.000 production of high precision hourly.
* This machine adopts hydraulic pressure system.
* With a push-cube self-adjusting to every position of the "V" hold where the pack is positioned.
* The working table has a Photo electric protection which gives maximum safety to the operator guarantee.
* The working process stability, products surface is smooth, and the size is unified and regular with high precision.

* Strict production quality control ensures that each machine can be used for decades.

* CE certification can be provided, our machines are produced in full compliance with CE certification standards.

Applications

JCTPRINT die-cutting machine is mainly used for forming die-cutting of various wine, food and beverage labels and other special-shaped trademarks. It can be widely used for die-cutting playing cards of various sizes, aluminum-plastic bags, greeting cards, covers of instant noodles, notebooks, credit cards, hang tags, manuals, etc., as well as children's book cards and books of various special shapes.

Die-cut finished product

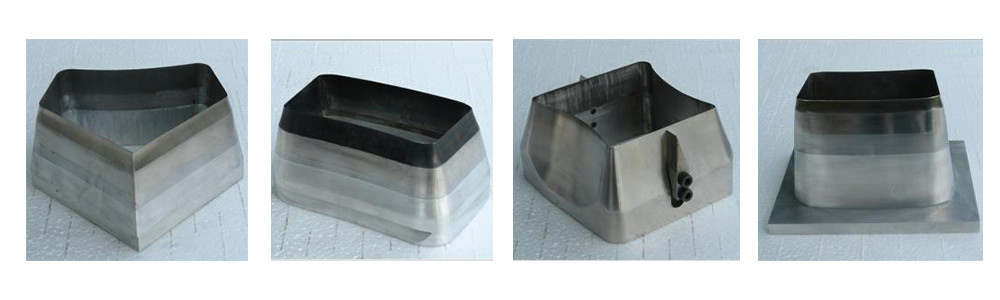

Die cutting mould

We also provide die cutting molds, various shapes can be customized according to your requirements, and die cutting molds can be customized according to the finished product.
