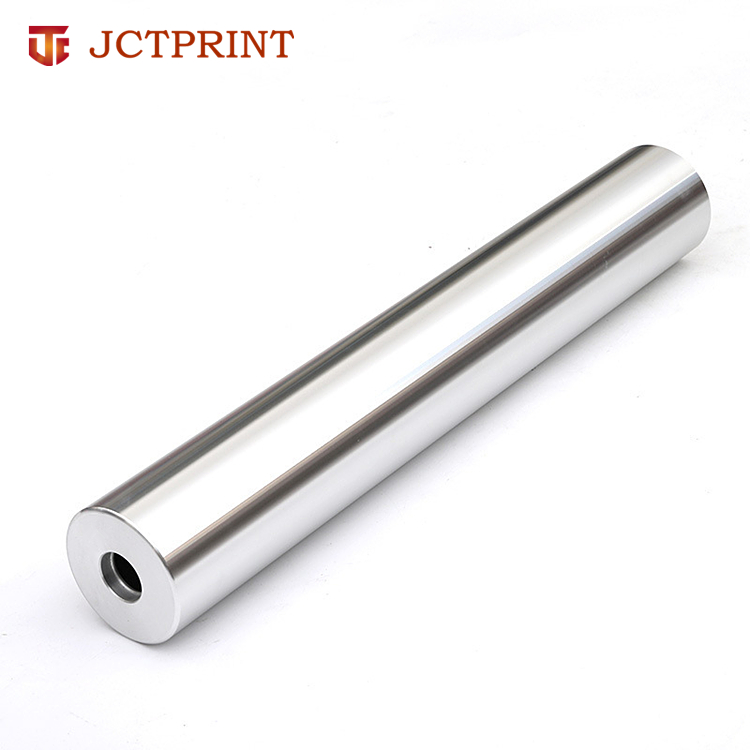

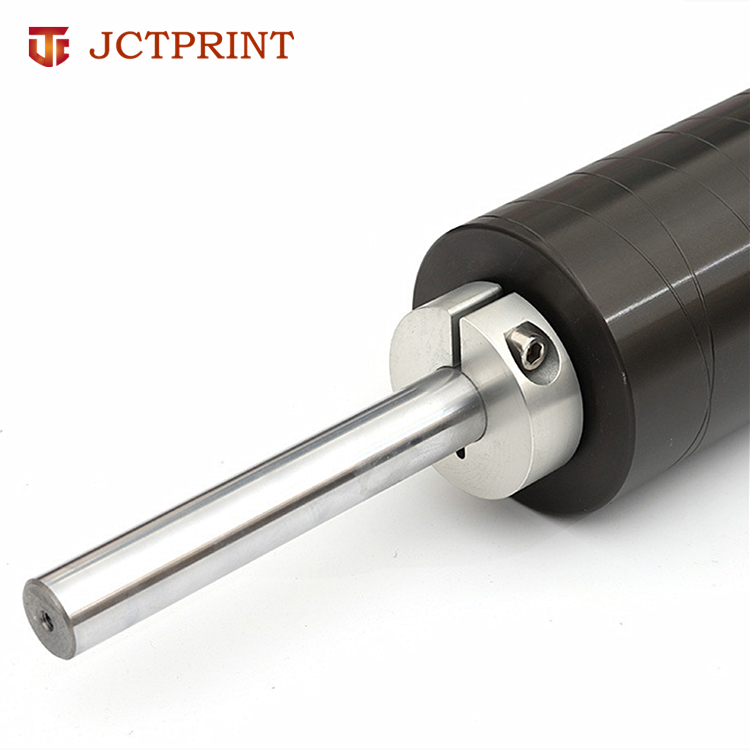

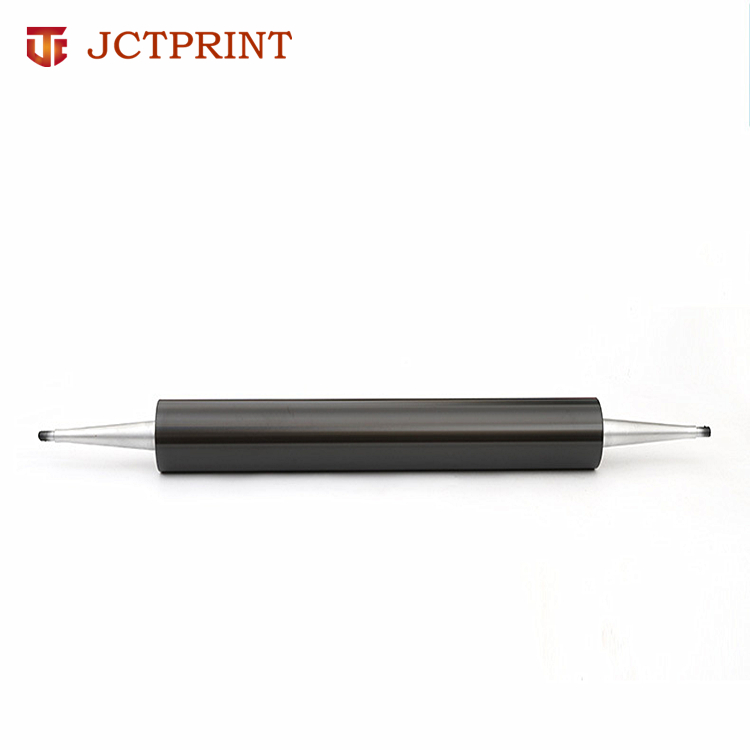

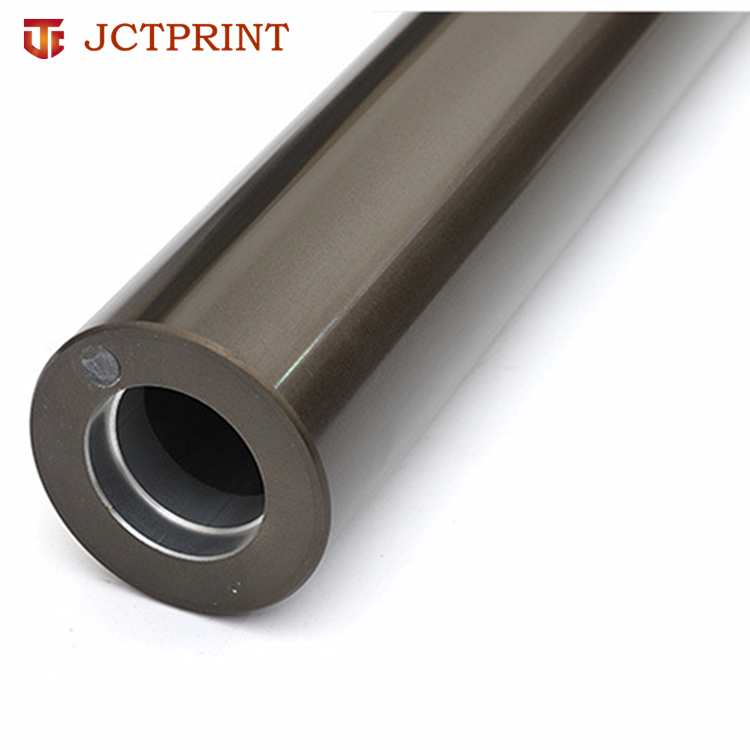

Aluminum guide roller
Update time:2021-04-27
JCTPRINT specializes in the production of aluminum guide rollers, you can choose a variety of styles, surface textures, support customization, and the price is reasonable.
* Length range: 100-6000mm
*Outer diameter range: 25-320mm
*Anodize: HV300/HV700
*Thickness of anodize: 20-80μm
*Dynamic balance will be small than 2g , concentricity can reach to 0.02mm.
Inquire
Contact us
Rroduct description
Related products


Product Description

  JCTPRINT aluminum guide rollers are used for conveying, guiding and supporting objects on industrial (especially printing industry) production lines, featuring corrosion resistance and high strength.

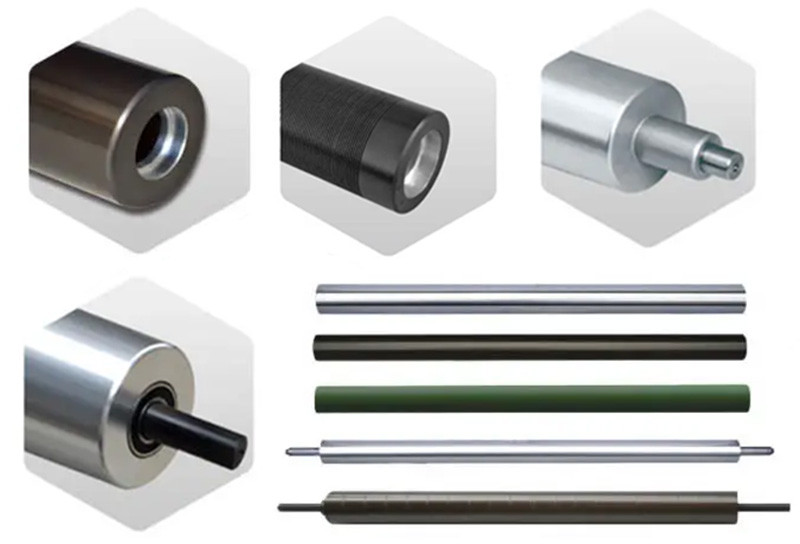

图层 7.jpg

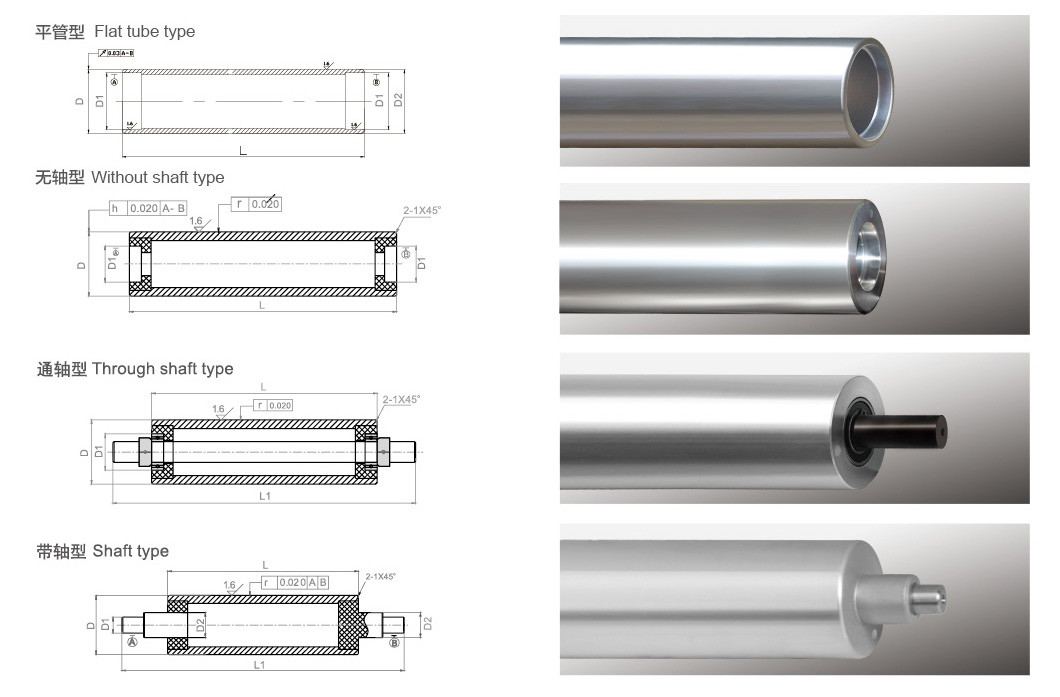

Standrad Stype



Get a quote quickly☞


Parameter

Outside Diameter

25-320mm

Length

100-6000mm

Weight

1-100kg

Anodize

HV300/HV700

Thickness of anodize

20-80μm

Type

Without shaft/ With shaft/ Through shaft

Surface

Smooth/ Cross line/ Center line/ Groove line

Smoothness

Ra6.3-0.4

Balancing

G6.3/G2.5

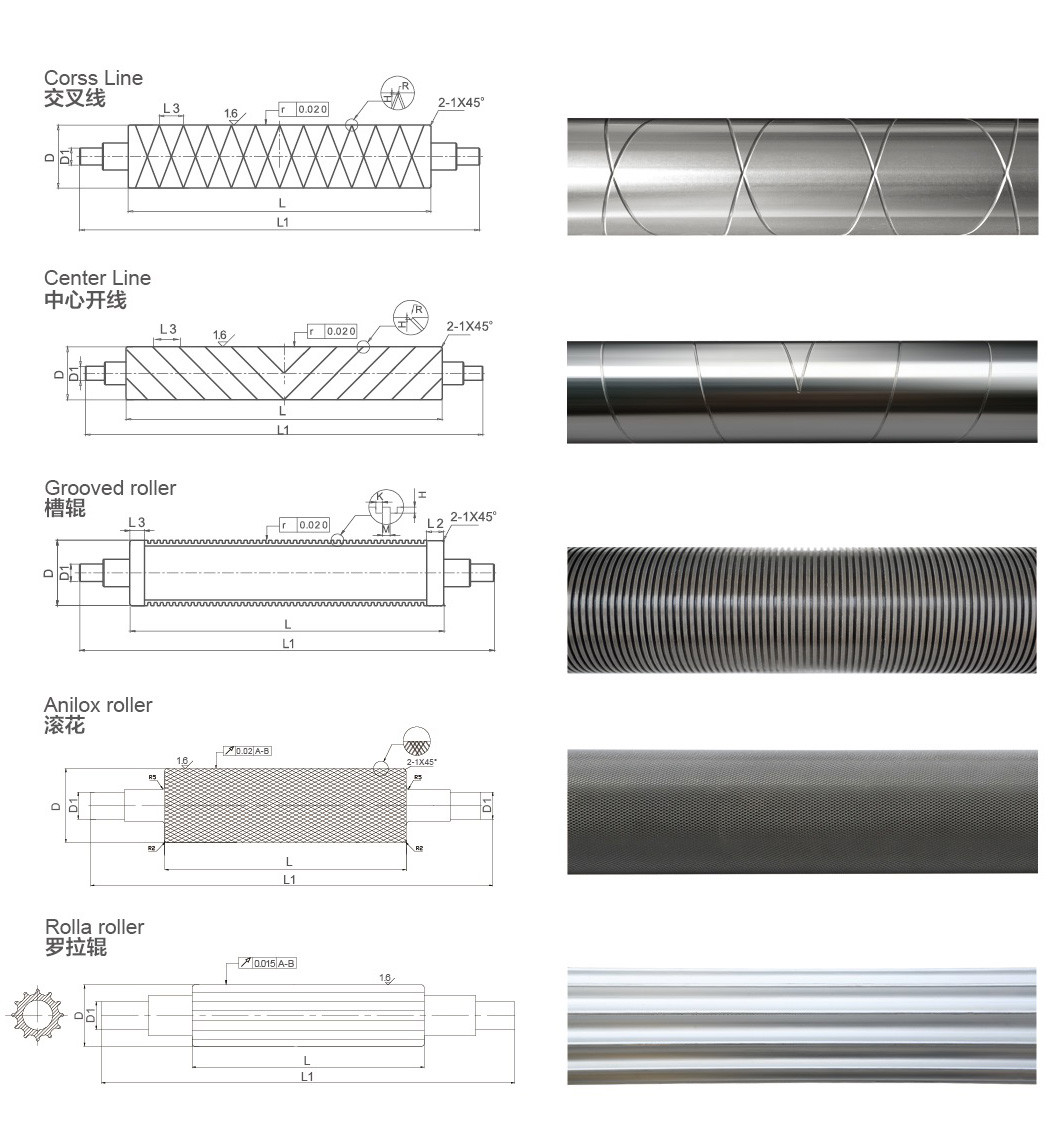

Surface Texture



Reference Effect



Various types of aluminum rollers can be customized, come and contact us☞.

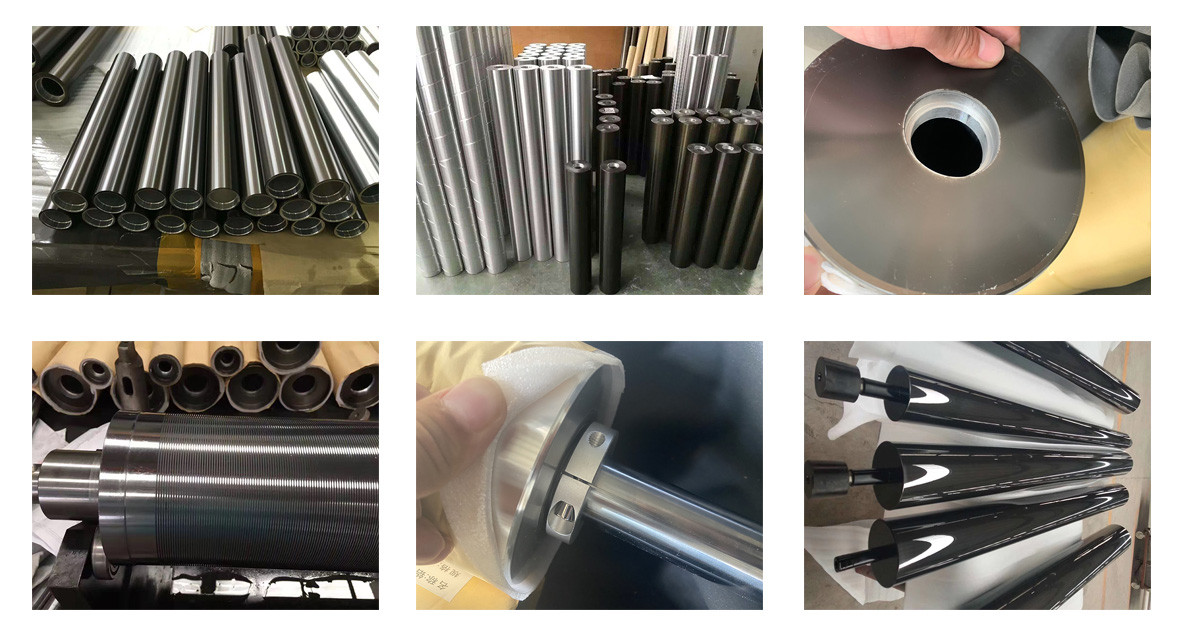

Our aluminum roller advantage

● There is a rib structure in the aluminum guide roller, which makes it very strong.

● All aluminum rolls are machined on the CNC lathe.Dynamic balance will be small than 2g , the roll surface gloss can be 0.8, concentricity can reach to 0.02mm.

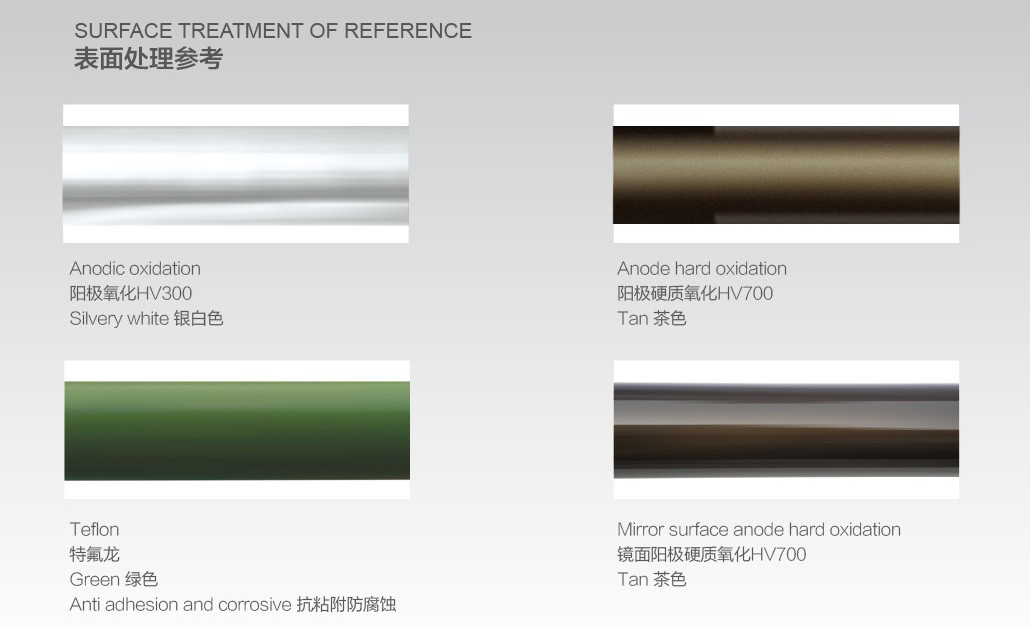

● According to different industries, the surface of the roller can also do special treatment Anodized HV300 treatment, Hard anodized

● Low resistance, light weight, flexible rotation, no rust, wear resistance and corrosion resistance

● Strict quality control system and quality inspection before shipment.

图层 2.jpg

Choosing us means choosing a bright future for yourself !
Come and talk to us about your business.
